CAMLOCK
| Product: | Type C Camlock Coupling Female Camlock x Hose Barb 316 Stainless Steel |
| Material: | stainless steel 304/ 316 |

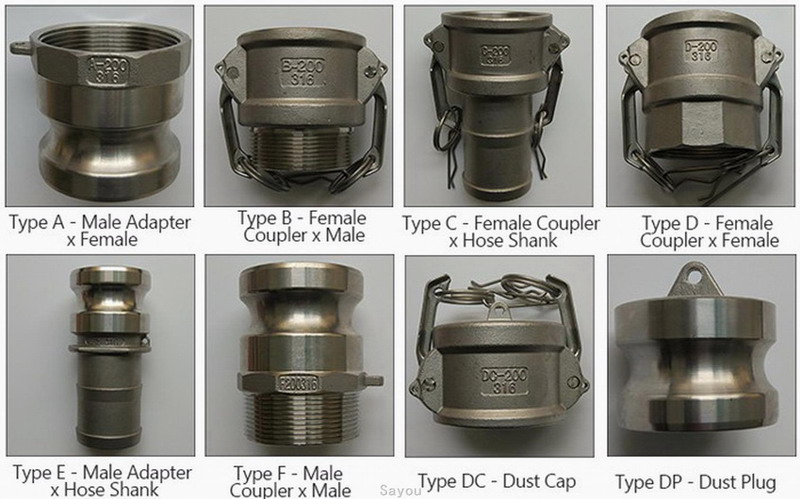

| Type: | A,B,C,D,E,F,DC,DP or as customer’s request |
| Thread: | NPT, BSP, BSPT |
| Seal: | NBR(buna),Viton,Telfon and Silica etc |
| Connection: | Male; female;(screw)thread; welding ;leather hose; |
| Size: | 1/2",3/4",1",11/4",11/2",2",21/2",3",4",5",6" |
| Gasket: | buna(NBR),viton and Telfon, silica |
| Casting Method: | die casting and gravity casting |
| Test pressure: | 1/2" 150PSI;3/4"-2" 250PSI(17.6bar); 3"-4" 200PSI(14.8bar); 2 1/2" 225PSI(15.8bar); 6" 150PSI(10.5bar) |
| Workmanship: | Precision casting or forged |

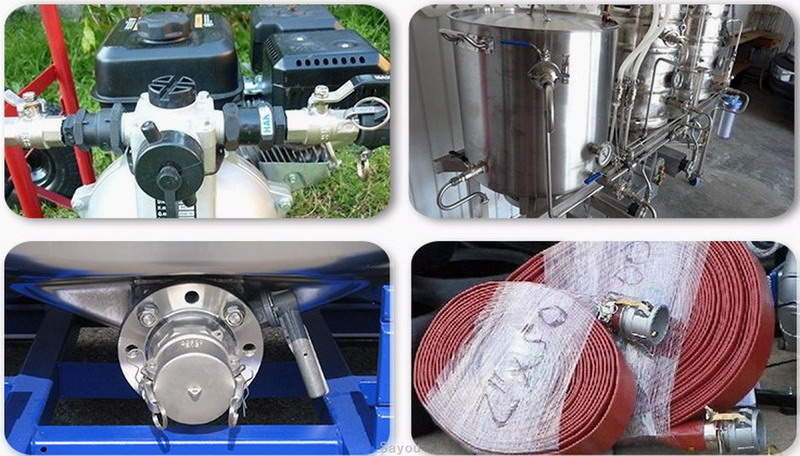

| Application: | oil,petroleum,chemical,water,gas |

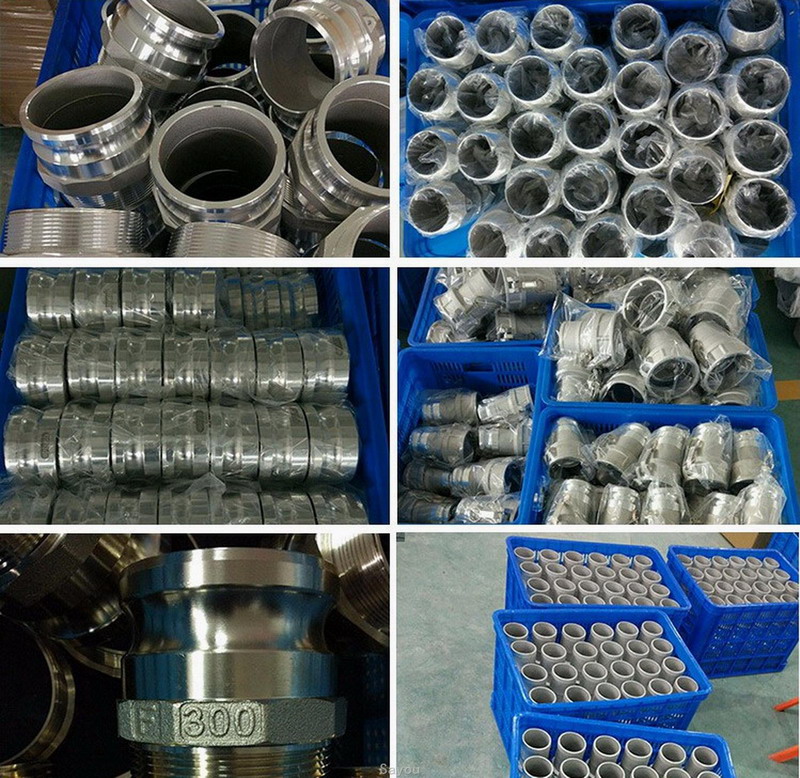

| Packing: | Inner plastic bag, outer carton, then wooden pallet; or as customer’s requirement |
