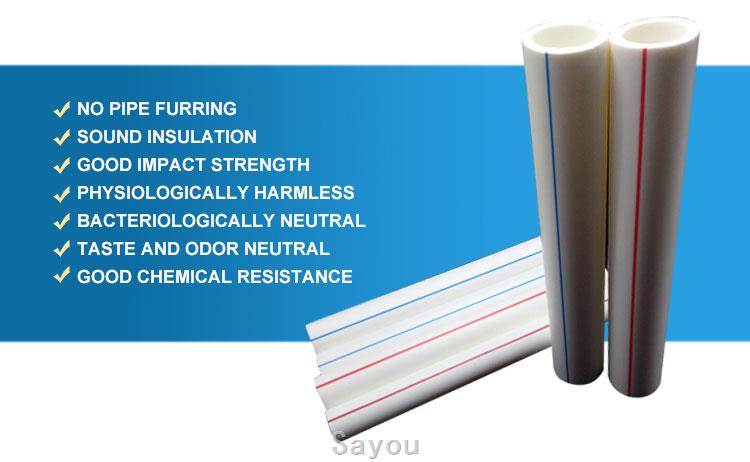

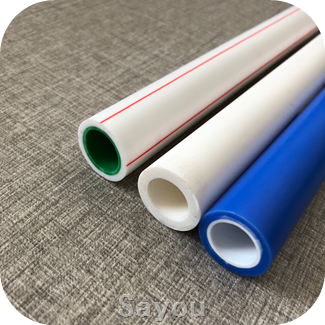

PP-R PIPE
1. Standard:GB/T 5836.1-2006,ISO9001:2000.ISO14001
2. Health, non-toxic, can be used for pure water, drinking water pipeline system, the product is a green buildingmaterials
3. Unique and unrivaled German connection technique, convenient and reliable installation, low construction expenses
4. Lightweight, convenient to transport and handle, good for labor-saving
5. Beautiful colors and excellent design ensure suitability for both exposed and hidden installation
6. Recyclable, environment-friendly, accords with GBM standards
7. Long time life: the pipeing system under normal use life of up to 50 years.

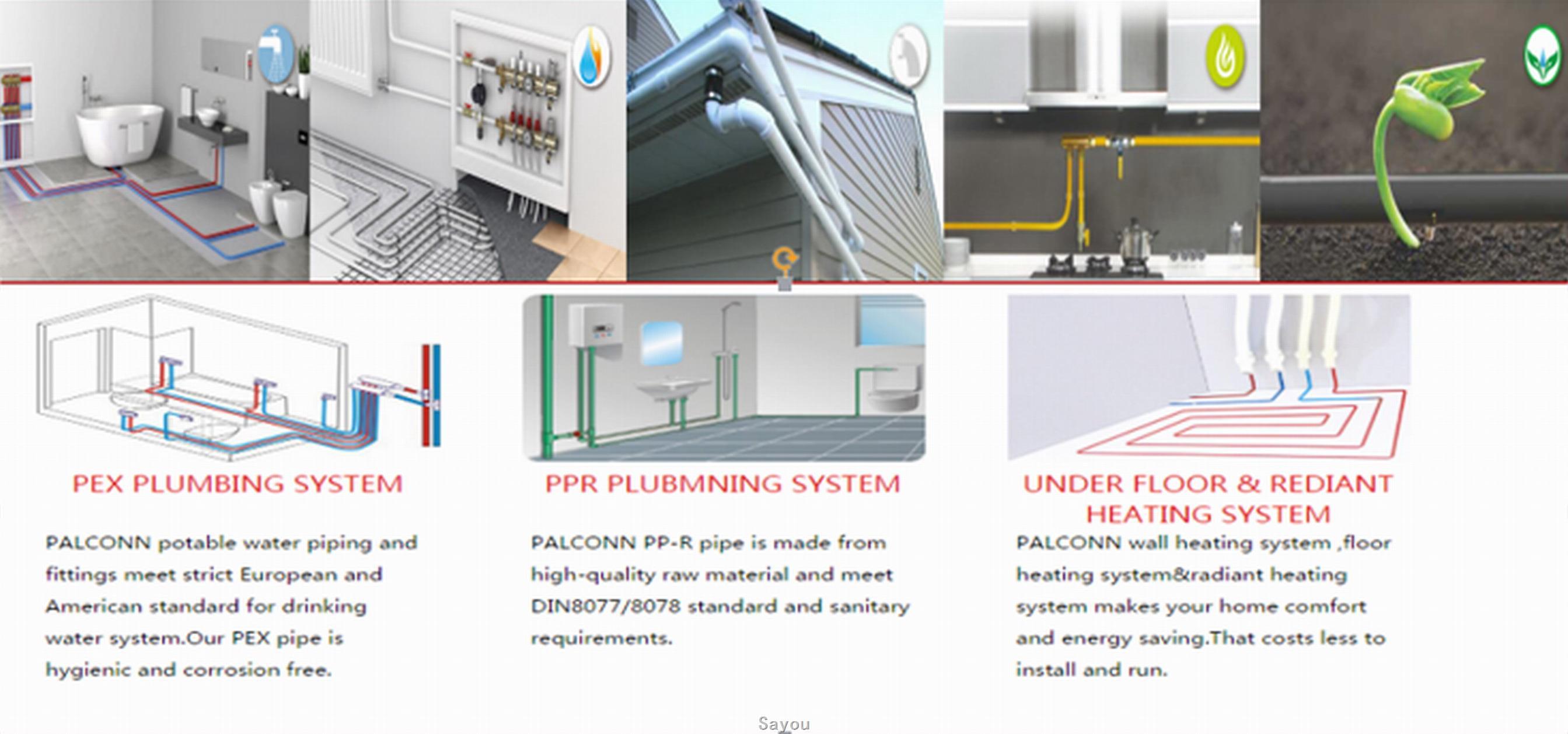

Residential Apartments,Condominiums,Public Housing
Schools,Laboratories and Chemical Sewerage
Hotels and Resorts
Pay attention to determine the overall coefficient of PPR pipe
For cold water (≤ 40 °C)system,choose the P.N(1.0-1.6Mpa)PPR pipr.
For hot water system,choose PN2.0Mpa PPR pipe
| 1.25MPa | 1.6MPa | 2.0MPa | 2.5MPa | 3.5MPa |
| Outer | Wall | Wall | Wall | Wall |
| Diameter | Thickness | Thickness | Thickness | Thickness |
| dn(mm) | en (mm) | en (mm) | en (mm) | en (mm) |
| 20 | 2 | 2.3 | 2.8 | 3.4 |
| 25 | 2.3 | 2.8 | 3.5 | 4.2 |
| 32 | 2.9 | 3.6 | 4.4 | 5.4 |
| 40 | 3.7 | 4.5 | 5.5 | 6.7 |
| 50 | 4.6 | 5.6 | 6.9 | 8.3 |
| 63 | 5.8 | 7.1 | 8.6 | 10.5 |
| 75 | 6.8 | 8.4 | 10.1 | 12.5 |
| 90 | 8.2 | 10.1 | 12.3 | 15 |
| 110 | 10 | 12.3 | 15.1 | 18.3 |
| 160 | 14.6 | 17.9 | 21.9 | 26.6 |
